Architect-2660

Description

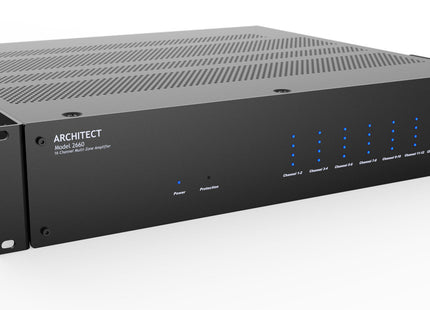

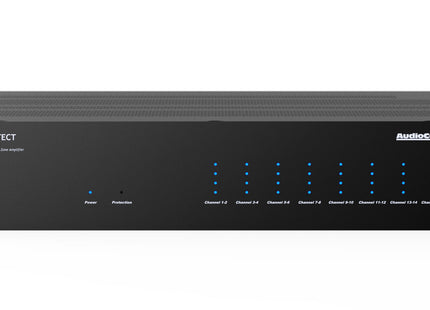

16 Channel Compact 2U Multi-Zone Power Amplifier

Architect 2660 is the latest addition to AudioControl’s highly successful Architect multi-zone amplifier series, which we are proud to say are among the best-selling multi-zone amplifiers worldwide, with the Architect Model 2660 being a stunning addition to this series.

16 channels of high-power amplification are output from the compact 2 U chassis, with the Architect 2660 delivering 65 watts per channel into 8 ohms and 100 watts per channel into 4 ohms, all channels driven. Channel bridging increases power to a remarkable 175 watts into 8 ohms. Benefitting from 35 years of proprietary AudioControl cool-running amplifier design, the Architect 2660 is equipped with features like input bussing, output pass-through, global 12 VDC trigger in/out with local 12 VDC trigger inputs for all zones, and input signal sensing on/off. Bus A includes a coaxial S/PDIF input for a digital source. Amplifier channels and connected loudspeakers are protected by AudioControl’s fast-acting LightDrive anti-clipping circuitry.

Available in an expresso black finish, the Architect 2660 is designed, engineered, and manufactured in the USA, and is covered by AudioControl’s standard five-year limited warranty.

Read more

Architect-2660

Product form

16-Channel Compact 2U Multi-Zone Power Amplifier

  • 16 channels, up to 8 Zones
  • 65 W into 8 ohms, 100 W into 4 ohms
  • Bridgeable outputs
  • Individual Local and Grouped BUS inputs

SKU: 8611280

Description

16 Channel Compact 2U Multi-Zone Power Amplifier

Architect 2660 is the latest addition to AudioControl’s highly successful Architect multi-zone amplifier series, which we are proud to say are among the best-selling multi-zone amplifiers worldwide, with the Architect Model 2660 being a stunning addition to this series.

16 channels of high-power amplification are output from the compact 2 U chassis, with the Architect 2660 delivering 65 watts per channel into 8 ohms and 100 watts per channel into 4 ohms, all channels driven. Channel bridging increases power to a remarkable 175 watts into 8 ohms. Benefitting from 35 years of proprietary AudioControl cool-running amplifier design, the Architect 2660 is equipped with features like input bussing, output pass-through, global 12 VDC trigger in/out with local 12 VDC trigger inputs for all zones, and input signal sensing on/off. Bus A includes a coaxial S/PDIF input for a digital source. Amplifier channels and connected loudspeakers are protected by AudioControl’s fast-acting LightDrive anti-clipping circuitry.

Available in an expresso black finish, the Architect 2660 is designed, engineered, and manufactured in the USA, and is covered by AudioControl’s standard five-year limited warranty.

Read more

  • FEATURES
  • SPECIFICATIONS
  • RESOURCES
  • 16 Channels of AudioControl Power and Performance
  • 65 watts per channel into 8 Ohms (All channels driven)
  • 100 watts per channel into 4 Ohms (All channels driven)
  • Configurable into 8 Bridged Channels
  • Bridged Channel Power 175 watts into 8 Ohms
  • Energy-Efficient Cool Operation
  • Low Standby Current Draw, 1 watt or Less
  • Compact Design Fits into 2 Rack Spaces
  • LightDrive Anti-Clipping Protection Circuitry
  • 2 x Bus Inputs A (Digital) & B (Analog)
  • Global 12 VDC Trigger Input and Output
  • Remote/Local Zone Input Trigger
  • Signal-Sensing On All Channels
  • Level Controls for All Input Pairs
  • Stereo-to-Mono Switch for Easy Channel Bridging
  • Rack Mount Brackets Included
  • Five-Year AudioControl Warranty

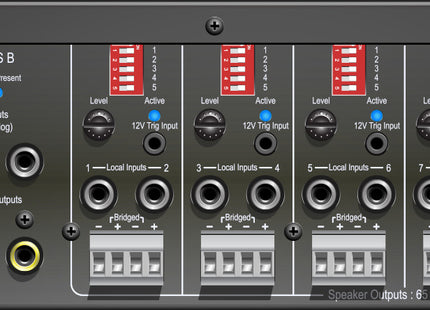

INPUTS
Inputs: 8 Stereo Local Analog Inputs, 1 Stereo Bus Coaxial Digital Input, 1 Stereo Bus Analog Input
Input Sensitivity: Variable 0 to 1 Vrms
Analog Input Sensitivity: 1 Vrms for full output; level at maximum		CONTROL
Remote Power Trigger: +12 VDC or Dry Contact Closure
OUTPUTS
Amplifier Channels: 16
Power Output (8 Ω): 65 W per channel
Power Output (4 Ω): 100 W per channel
Power Output (Bridged Mono): 175 W
Minimum Speaker Load: 4 Ω		GENERAL
Power Consumption (Standby): 0.4 W
Power Consumption (Idle): 30 W
Power Consumption (loud listening level): 217 W
Power Consumption (maximum): 1300 W
BTU/Hour Output (Standby): 1.4 BTU/hr
BTU/Hour Output (Idle): 92 BTU/hr
BTU/Hour Output (1/8th power, loud listening level): 297 BTU/hr
BTU/Hour Output (maximum): 890 BTU/hr
Protection: clipping, short circuit, thermal, ultrasonic, DC offset, stable into reactive or mismatched loads
PERFORMANCE
Damping Factor: >200
Signal to Noise: >105 dB, (A-wtd, ref full output)
Crosstalk: >80 dB @ 1kHz
Gain: 27 dB
DAC Specifications: 32 to 192 kHz sample rate, 16-/24-bit depth		WEIGHT & DIMENSIONS
Dimensions: 17” W x 15.5” D x 3.5” H (2U)
Weight: 16.0 lbs. (7.3 kg)
 IN THE BOX
Architect Model 2660, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty

MANUAL
DATA SHEET
