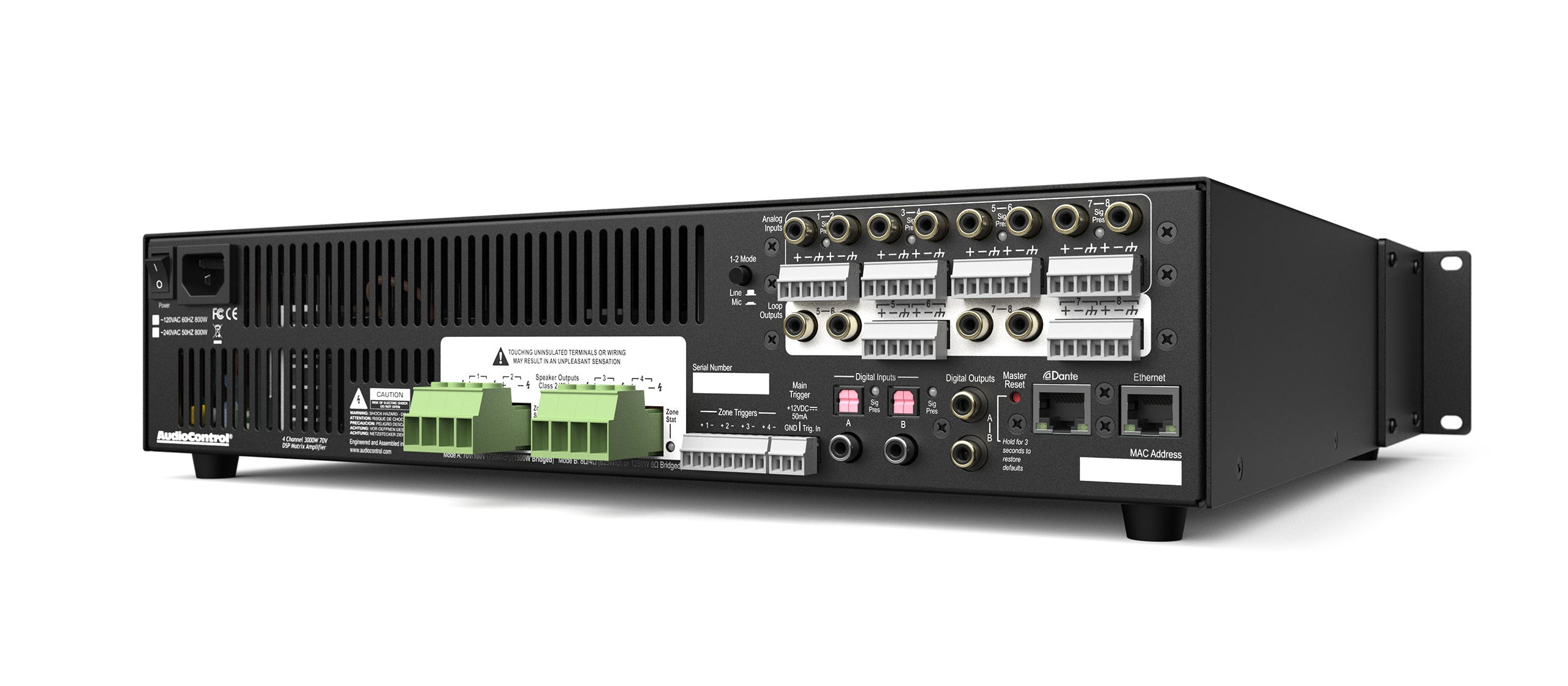

CM4-750D with Dante
CM4-750D with Dante
4-Channel High-Power Dual Mode 70 Volt DSP Amplifier with Dante
SKU: 8611605
- FEATURES
- POWER AND CONTROL AT YOUR FINGERTIPS
- SPEAKER OPTIMIZATION PROFILES
- SPECIFICATIONS
- RESOURCES
- Network DHCP Signal Matrix Amplifier With Volume Control
- Dante Port
- 4 Channels x 750 Watts at 70/100 V or 2Ω/4Ω (All Channels Driven)
- 4 Channels x 625 Watts at 8Ω (All Channels Driven)
- 1500 Watts of Bridged Power at 70/100 V or 4Ω/8Ω
- Digital Signal Processing (DSP) Performance
- Built-In Speaker Optimization Profiles
- Ethernet Port for Status Monitoring, Source Switching and 12 Volt Trigger Control
- Built in Matrix Delivering Analog or Digital Inputs to be Routed To Any Zone or Digital Bus Output
- Network Programmable Graphic & Parametric Equalization with User Memories
- Assignable Names for All Zones & Amplifier
- Digital Signal Sense
- Programmable Electronic Crossover for Local Subwoofer Applications; Subsonic Filter
- AudioControl LightDrive Anti-Clipping Speaker Protection
- Digital and Analog Inputs with Digital and Analog Pass Thru / Loop Outputs
- Dual Digital Audio Bus Outputs
- Commercial and Home Installations
The CM Series feature on-board digital signal processing, graphic & parametric equalization by zone, network monitoring and programming, digital and analog inputs, plus the addition of volume control, channel/zone grouping and zone audio presets. They also allow individual channel and zone selection via standard TCP/IP, delivering incredible power and AudioControl’s legendary audio performance.
 |  |  |
Two digital inputs and outputs are both accessible in the matrixing so that any one of the input sources can be routed through the digital outputs. These digital outputs can be connected to other CM Series, The Director M or D Series or Architect digital inputs so that multiple amplifiers can receive any signal from any of the inputs.
AudioControl has partnered with a growing number of prominent architectural loudspeaker manufacturers to implement speaker performance profiles directly accessible from The Director® D Series onboard DSP. Each speaker manufacturer has provided critical performance data to AudioControl, enabling tailored profiles to be created and stored in software form. Factoring in the individual room acoustics for each home, these speaker profiles achieve an important step in providing the custom integrator the tools to deliver a premium entertainment experience by calibrating systems for their clients.
AUDIOCONTROL SOUND PARTNERS™
 |  |  |  |
 |  |  |  |
| INPUTS Inputs: 8 Balanced Inputs, 8 Unbalanced RCA Inputs, 2 Digital Combo Coax/TOSLINK Inputs Input Sensitivity: 1 Vrms for full output, level at maximum Input Gain: 30 dB | CONTROL Remote Power Trigger: +12 VDC or Dry Contact Closure Network Connection/Protocol: 10BaseT Ethernet TCP/IP Communication Protocol: HTTP or Telnet |
| OUTPUTS Amplifier Channels: 4 Power Output (70 V / 100 V): 750W per channel Power Output (70 V / 100 V Bridged): 1500W Power Output (8Ω / 4Ω): 625W per channel Power Output (8Ω Bridged): 1250W Minimum Speaker Load: 2Ω Preamp Audio Outputs: 4 Balanced, 4 Unbalanced RCA, 4 Digital Coax Loop Outputs | WEIGHT & DIMENSIONS
|
| IN THE BOX Model CM4-750, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty |
MANUAL
DATA SHEET
DRIVERS
AUTOMATION TABLE
FIRMWARE
SPEAKER PROFILES
